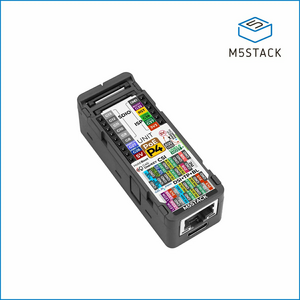

(U213)Unit PoE-P4

Unit PoE with ESP32-P4

SKU : U213
Shop : https://shop.m5stack.com/products/unit-poe-with-esp32-p4?ref=langship
Document : https://docs.m5stack.com/en/unit/Unit_PoE-P4
Release Date(probably) : 2026-02-27

Unit PoE‑P4 is a high‑performance PoE Ethernet embedded controller powered by the ESP32‑P4 SoC (RISC‑V 32‑bit dual‑core @ 360MHz + LP single‑core @ 40MHz). It integrates 16MB Flash and 32MB PSRAM, and features the built‑in IP101GRI Ethernet PHY supporting 10/100 Mbps communication. The device also supports PoE power delivery with a maximum output of 6W, and includes an onboard DC‑DC converter to supply system power, greatly simplifying power wiring in practical applications.

Datasheet

Unit PoE-P4 Mainboard Schematics PDF : SCH_StickPoE_SCH_Main_V0.2_20250829_2026_02_02_17_17_04.pdf
Unit PoE-P4 Power Board Schematics PDF : SCH_StickPoE_SCH_POWER_V0.2_20250731_2026_02_02_17_17_39.pdf
Unit PoE-P4 HAT Expansion Interface Schematics PDF : SCH_StickPoE_SCH_Hat_V0.2_20250801_2026_02_02_17_16_35.pdf
Unit PoE-P4 Model Size PDF : U213-unit-poe-p4-model-size.pdf
ESP32-P4 : esp32-p4_datasheet_en.pdf
IP101GRI : IP101GRI_Datasheet.pdf
TPS23753A : tps23753a.pdf
