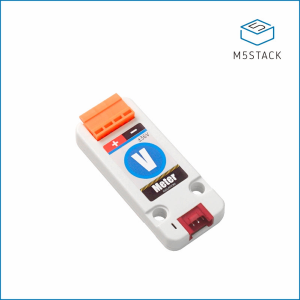

(U087)VMeter

Voltmeter Unit (ADS1115)

SKU : U087
Shop : https://shop.m5stack.com/products/voltmeter-unit-ads1115?ref=langship
Shop(Japan) : https://www.switch-science.com/products/6740
Document : https://docs.m5stack.com/en/unit/vmeter
Release Date(probably) : 2020-09-18

Voltmeter Unit is a voltage meter that can monitor the voltage in real time. The 16-bit ADC (analog-to-digital) converter ADS1115 is used internally to communicate through I2C (0X49).

Datasheet

: static.pdf
https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/docs/datasheet/unit/ADS1115.PDF : ADS1115.PDF
CA-IS3020S : CA-IS3020S.pdf
ADS1115 : ADS1115.PDF
