(U068-B)Hat-DAC2

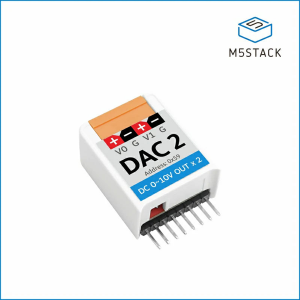

M5StickC DAC 2 Hat (GP8413)


DAC2 Hat is an I2C digital-to-analog signal conversion unit designed to be compatible with the StickC series controllers. It offers high precision and accuracy in its performance by using the GP8413 solution. This chip can linearly convert a 15-bit digital value into two independent analogue voltages of 0-5V or 0-10V. The output voltage error is only 0.2%, with a linearity of up to 0.01%.

Datasheet
