(C139)PaperS3

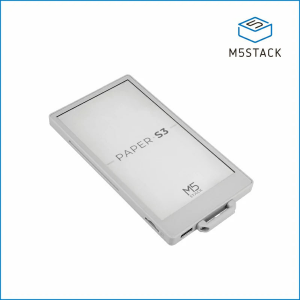

M5PaperS3 ESP32S3 Development Kit (960x540, 4.7" eInk Display, 235 ppi)

SKU : C139
Shop : https://shop.m5stack.com/products/m5papers3-esp32s3-development-kit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10112
Document : https://docs.m5stack.com/en/core/paperS3
Release Date(probably) : 2024-12-13

PaperS3 is a touchable low-power e-ink display controller device launched by M5Stack, featuring the ESP32-S3 microcontroller. The front embeds a 540×960 resolution 4.7" (touch and screen integrated) e-ink display, supporting 16-level grayscale. It is paired with a GT911 capacitive touch panel, supporting dual-point touch and various gesture operations. Compared to previous products, PaperS3 adopts a full-screen structure. Unlike standard LCD screens, the e-ink display provides a better text reading experience for users while offering low power consumption, image retention on power loss, and other features.

Datasheet

: static.pdf
Download Full Schematic : sch_papers3_V1.0.pdf
ESP32-S3 : esp32-s3_datasheet_cn.pdf
GT911 : gt911_datasheet.pdf
