Last Modified : 2024-09-25
(K006)M5GO IoT Kit[EOL]
(EOL)M5GO IoT Starter Kit
- SKU : K006
- Shop : https://shop.m5stack.com/products/m5go-iot-starter-kit-stem-education?ref=langship
- Shop(Japan) : https://www.switch-science.com/products/3875
- Document : https://docs.m5stack.com/en/core/m5go
- Quick Start : https://docs.m5stack.com/en/quick_start/m5core/uiflow
- Release Date(probably) : 2018-04-23

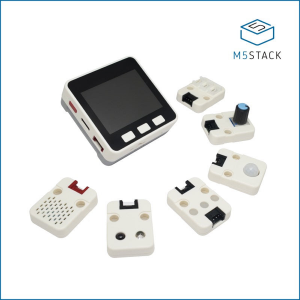

This M5GO IoT Kit is a multi-Unit feast with 6 M5units inside (ENV II, IR, RGB, PIR, ANGLE, HUB). Just like other M5Stack development kit, M5GO is powered by ESP32.
Variation
- (K006)M5GO IOT KIT[EOL] - [EOL](USB2UART: CP2104, IMU: 9-axis BMM150 + MPU6886)
- (K022)M5GO LITE[EOL] - [EOL](USB2UART: CP2104, IMU: 9-axis BMM150 + MPU6886), Reduced accessories
- (K006-V26)M5GO IOT KIT V2.6 - New Version(USB2UART: CH9102, IMU: 6-axis MPU6886)
- (K006-V27)M5GO IOT KIT - Glass screen, Grove port 5.1V
Datasheet
- : static.pdf
- here : IIC_IP5306_REG_V1.4.pdf
- ESP32 Datasheet : esp32_datasheet_en.pdf
- https://github.com/m5stack/M5-Schematic/blob/master/Core/Basic/M5-Core-Schematic(20171206).pdf : M5-Core-Schematic(20171206).pdf
- ESP32 : esp32_datasheet_en.pdf
- ILI9342C : ILI9342C-ILITEK.pdf
- MPU6886 : MPU-6886-000193%2Bv1.1_GHIC_en.pdf
- BMM150 : BMM150_datasheet_en.pdf
- IP5306 : IIC_IP5306_REG_V1.4_cn.pdf
