(K151)StackChan

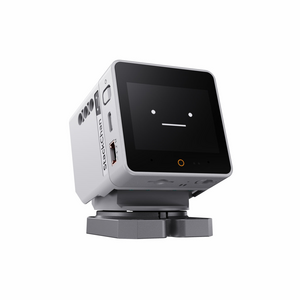

StackChan: Kawaii Co-Created Open-Source AI Desktop Robot

SKU : K151
Shop : https://shop.m5stack.com/products/stackchan-kawaii-co-created-open-source-ai-desktop-robot?ref=langship
Document : https://docs.m5stack.com/en/StackChan

StackChan comes alive on your desk! It listens when you talk, responds to your touch, and even watches you when needed. Watch it chat, make playful expressions, and even dance for fun. Every moment with StackChan is full of surprises and entertainment.

Datasheet

StackChan Host CoreS3 Schematic PDF : Sch_M5_CoreS3_v1.0.pdf
StackChan Base Adapter Board Schematic PDF : SCH_Adapter.pdf
StackChan Base Power Board Schematic PDF : SCH_Power.pdf
StackChan Base Ring Board Schematic PDF : SCH_Ring.pdf
StackChan Base Touch Board Schematic PDF : SCH_Touch.pdf
StackChan Model Size PDF : Model_Size.pdf
Main Controller ESP32-S3 : esp32-s3_technical_reference_manual_en.pdf
Camera GC0308 : GC0308.PDF
Proximity Sensor LTR-553ALS-WA : LTR-553ALS-WA.PDF
Accelerometer + Gyroscope BMI270 : BMI270.PDF
Geomagnetic Sensor BMM150 : BMM150.PDF
I2S Audio Amplifier AW88298 : AW88298.PDF
Audio Codec ES7210 : ES7210.PDF
Power Management AXP2101 : AXP2101_Datasheet_V1.0_en.pdf
RTC BM8563 : BM8563.PDF
IO Expander AW9523B : AW9523B-EN.pdf
Servo Motor SCS0009 : SCS0009.pdf
NFC ST25R3916 : ST25R3916_EN.pdf
Touch Controller Si12T : Si12T_Datasheet_EN.pdf
Infrared Receiver IRM56384 : IRM56384.pdf
Battery Monitor INA226 : INA226.pdf
IO Expander PY32L020 : PY32L020_Datasheet_EN.pdf
