AXP192(Core2/M5StickC)

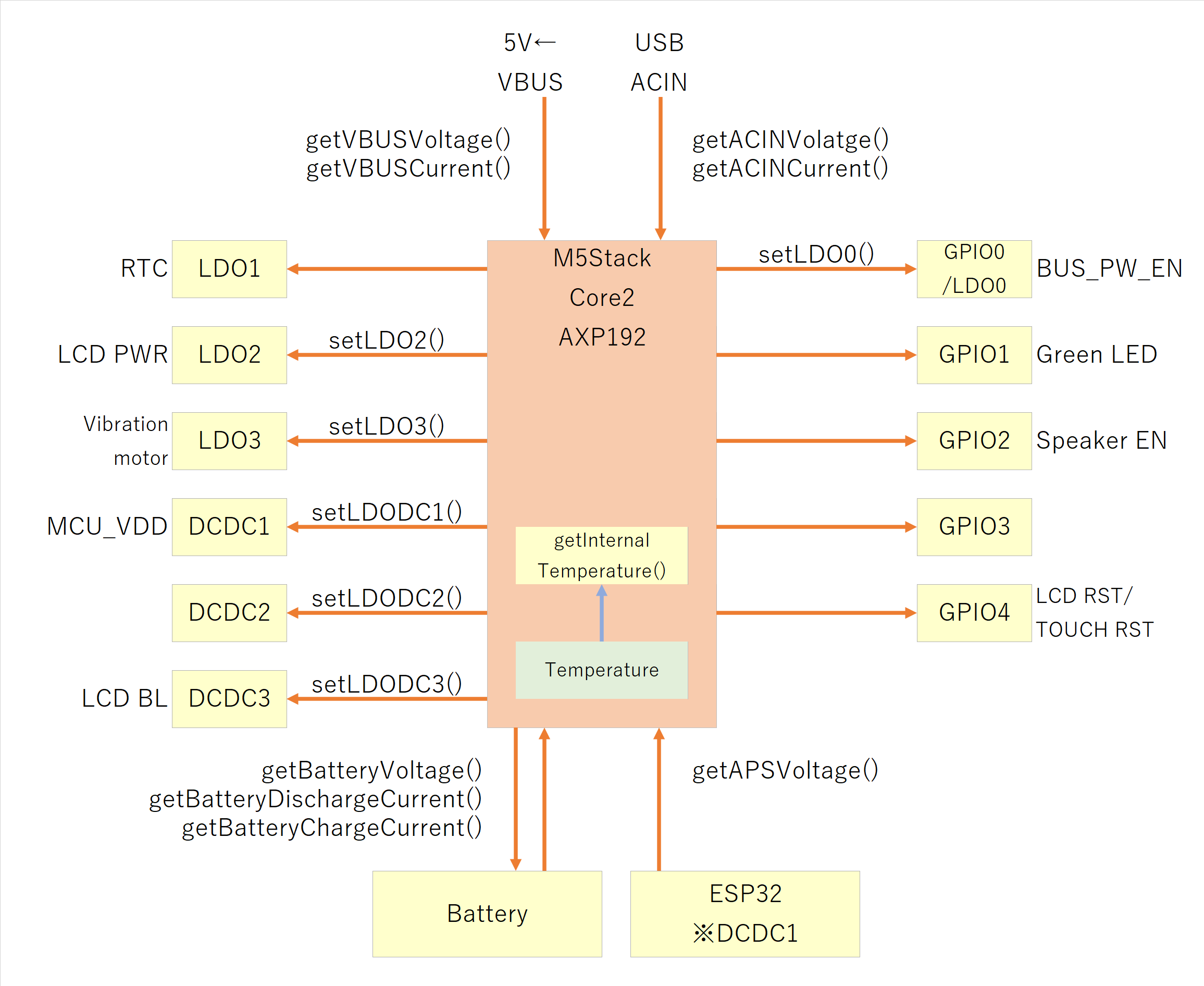

M5Stack Core2 Wiring diagram
- GPIO does not have a function yet
- 5V will not be output unless LDO0 is turned ON.
Setup Example
M5.begin();
M5.Power.setExtPower(true); // external port 5V output

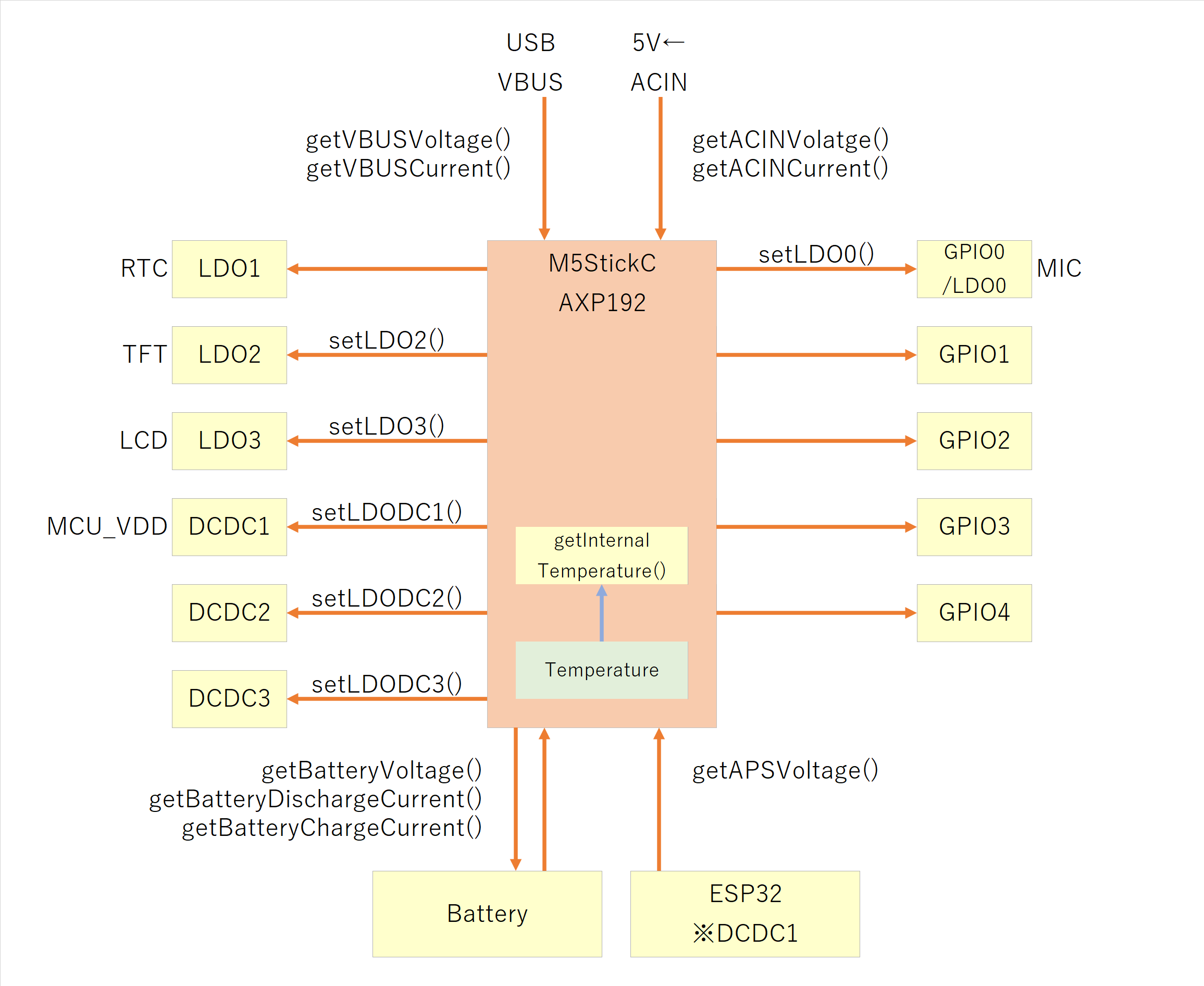

M5StickC (Plus) Wiring diagram
Difference
| TYPE | PIN | M5Stack Core2 | M5StickC (Plus) |
|---|---|---|---|
| INPUT | ACIN | USB | 5V IN |
| INPUT | VBUS | 5V | USB |
| OUTPUT | LDO1 | RTC | RTC |
| OUTPUT | LDO2 | LCD PWR | TFT |
| OUTPUT | LDO3 | Vibration motor | LCD |
| OUTPUT | DCDC1 | MCU_VDD | MCU_VDD |
| OUTPUT | DCDC2 | ||
| OUTPUT | DCDC3 | LCD BL | |
| GPIO/OUTPUT | GPIO0 | BUS_PW_EN | MIC |
| GPIO | GPIO1 | Green LED | |
| GPIO | GPIO2 | Speaker EN | |
| GPIO | GPIO3 | ||
| GPIO | GPIO4 | LCD RST/TOUCH RST |
