(A114)Atomic PWM Base

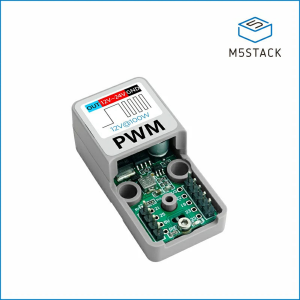

ATOMIC PWM Base (EG27324)
- SKU : A114
- Shop : https://shop.m5stack.com/products/atomic-pwm-base-fdd8447l?ref=langship
- Shop(Japan) : https://www.switch-science.com/products/9432
- Document : https://docs.m5stack.com/en/atom/Atomic%20PWM%20Base
- Release Date(probably) : 2023-12-15
Atomic PWM Base is a single-channel PWM adjustable DC driver designed to be compatible with the Atom series main controller. It supports DC power input ranging from 12-24V. The output signal duty cycle is controlled through the built-in MOSFET switch. It has a maximum load capacity of 12V@100W and includes a built-in DCDC step-down circuit. This allows the input power supply to drive the load while also providing power to the entire device, making deployment more convenient.
