(K149)CoreS3 Thread BR

M5Stack Thread Border Router

SKU : K149
Shop : https://shop.m5stack.com/products/m5stack-thread-border-router?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10937
Document : https://docs.m5stack.com/en/core/CoreS3_Thread_BR
Release Date(probably) : 2025-12-26

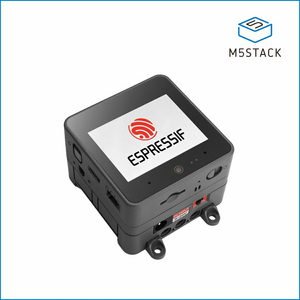

CoreS3 Thread BR is a Thread Border Router kit. The core components consist of the CoreS3 controller and the Module Gateway H2 wireless module. The CoreS3 acts as the control core of the edge gateway, running user applications and the OpenThread protocol stack. The CoreS3 controller is based on the ESP32-S3 SoC and is equipped with a combination of 16MB Flash and 8MB PSRAM. It supports 2.4 GHz Wi-Fi, integrates a 2.0" touch LCD display, camera, microphone, speaker, RTC, and a six-axis motion sensor, among other rich peripherals. The Module Gateway H2 module is built around the ESP32-H2-MINI-1 module and supports IEEE 802.15.4 wireless communication. As an OpenThread Radio Co-Processor (RCP), it provides Thread packet forwarding capabilities for the CoreS3 main controller. CoreS3 Thread BR is well suited for applications such as smart homes, environmental monitoring, sensor networks, and low-power wireless communication nodes, enabling developers to quickly carry out prototyping and product development.

Datasheet

CoreS3 Schematics PDF : Sch_M5_CoreS3_v1.0.pdf
Base DIN Schematics PDF : SCH_DinBase_V1.1.pdf
Module Gateway H2 Schematics PDF : Sch_Module-Gateway_H2_v0.4.pdf
CoreS3 Thread BR Model Size PDF : K149-CORES3-Thread-BR.pdf
