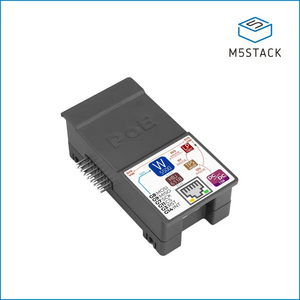

(A165)StamPLC PoE

PoE Module for StamPLC (W5500)

SKU : A165
Shop : https://shop.m5stack.com/products/poe-module-for-stamplc-w5500?ref=langship
Shop(Japan) : https://www.switch-science.com/products/11011
Document : https://docs.m5stack.com/en/stamplc/StamPLC_PoE
Release Date(probably) : 2026-01-16

StamPLC PoE is an Ethernet control module designed for the StamPLC host. It supports PoE (Power over Ethernet) technology, enabling both data transmission and power supply through a single Ethernet cable. The module integrates a W5500 embedded Ethernet controller with a built-in TCP/IP protocol stack, providing 8 independent hardware sockets, a 10/100M Ethernet data link layer (MAC), and physical layer (PHY). It supports mainstream network communication methods such as UDP and TCP. The module connects to the network via an RJ45 Ethernet interface and communicates with the StamPLC host through an SPI interface. It is suitable for scenarios with high requirements for network stability and real-time performance, such as industrial automation production lines, centralized building control systems, energy and power distribution monitoring, and data center and communication equipment management in wired network access applications.

Datasheet

StamPLC PoE Schematics PDF : SCH_StamPLC_PoE_SCH_MAIN_V1.0_20251104_2025_12_02_17_25_33.pdf
StamPLC PoE Model Size PDF : A165-model-size-stamplc-poe.pdf
W5500 : W5500_datasheet_v1.0.2_1_en.pdf
