(S007-V033)Stamp-S3A

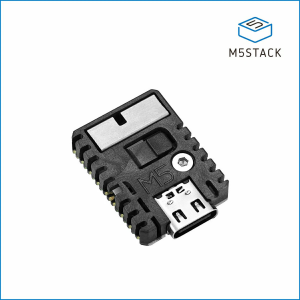

M5StampS3A ESP32S3 Module

SKU : S007-V033
Shop : https://shop.m5stack.com/products/m5stamp-esp32s3a-module?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10377
Document : https://docs.m5stack.com/en/core/Stamp-S3A
Release Date(probably) : 2025-07-11

Stamp-S3A is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It is equipped with a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply-optimized 3D antenna design offers stronger wireless communication performance. Twenty-three GPIOs are broken out and provided via 1.27 mm / 2.54 mm pitch SMT/DIP pin headers or sockets, allowing effortless PCB integration and enabling developers to build applications rapidly.

Datasheet

Stamp-S3A Schematics PDF : Sch_StampS3_v0.3.3.pdf
Stamp-S3A Model Size PDF : STAMP-S3A.pdf
ESP32-S3 : esp32-s3_datasheet_en.pdf
MUN3CAD01-SC : MUN3CAD01-SC.pdf
