(U205)Chain Joystick

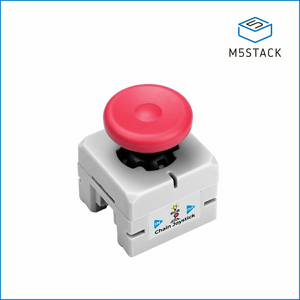

Chain Joystick (STM32G031)

SKU : U205
Shop : https://shop.m5stack.com/products/chain-joystick-stm32g031?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10868
Document : https://docs.m5stack.com/en/chain/Chain_Joystick
Release Date(probably) : 2025-11-14

Chain Joystick is a high-precision Hall effect joystick input node in the M5Stack Chain series. It supports three-axis control signal input, including analog input for X/Y axes and digital key input for the Z-axis. The device uses a Hall effect joystick that achieves high-precision control by detecting magnetic field changes. It features non-contact operation, wear resistance, high accuracy, and strong anti-interference capability, ensuring product stability and long lifespan. It also integrates a programmable RGB LED for status indication and interactive display. It is suitable for human-machine interaction, robot control, and other application scenarios.

Datasheet

Chain Joystick Schematics PDF : U205-SCH_Chain-Joystick_SCH_Main_V1.0_2025_09_29_23_34_52.pdf
Chain Joystick Model Size PDF : U205-Model-size-chain-joystick.pdf
Chain Joystick Communication Protocol : M5Stack-Chain-Joystick-Protocol-EN.pdf
