(K047)ATOM STEPMOTOR[EOL]

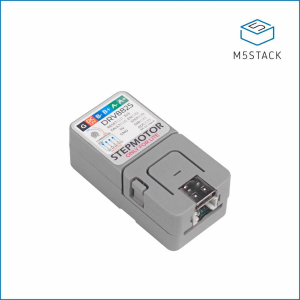

(EOL)ATOM Stepper Motor Driver Development Kit (DRV8825)

SKU : K047
Shop : https://shop.m5stack.com/products/atom-stepmotor-kit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/6531
Document : https://docs.m5stack.com/en/atom/atomic_step_motor
Release Date(probably) : 2020-08-07

ATOM STEP MOTOR is a stepper motor driver module suitable for Atom Lite only, with built-in DRV8825 driver chip, which can be used to drive a stepper motor. By adjusting the variable resistance, it can provide a maximum driving current of 1.2A. The chip has its own over-current protection function. A DIP switch on board can adjust the step number flexibly. Built in DC-DC,the external power supply can supply power to ATOM,drive motor needs an external power supply（9-18V).

Datasheet

: static.pdf
DRV8825 : DRV8825_en.pdf
