(U069-V11)ADC HAT

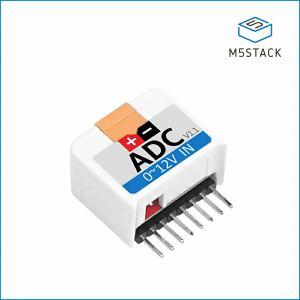

M5StickC ADC Hat ADS1110 V1.1

SKU : U069-V11
Shop : https://shop.m5stack.com/products/m5stickc-adc-hat-ads1110-v1-1?ref=langship
Document : https://docs.m5stack.com/en/hat/hat-adc
Release Date(probably) : 2024-06-21

ADC HAT V1.1 is another type of C-HAT specifically design for M5StickC controller. Same as ADC unit, this is an ADC converter component for stickc. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort. The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.

Datasheet

: static.pdf
ADS1100 : ads1100_en.pdf
