(M146)Module CC1101

M5Stack CC1101 Module (855-925MHz)

SKU : M146
Shop : https://shop.m5stack.com/products/m5stack-cc1101-module-855-925mhz?ref=langship
Document : https://docs.m5stack.com/en/module/Module_CC1101
Release Date(probably) : 2025-11-07

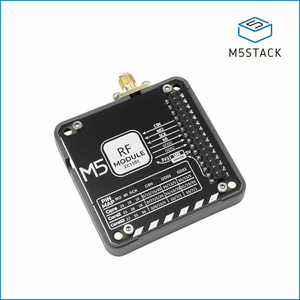

Module CC1101 is a high-performance wireless communication module. It adopts the E07-900M10S module solution (built-in CC1101 low-power Sub-1 GHz RF transceiver) with an operating frequency range of 855 ~ 925MHz. It supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation methods, providing stable wireless data transmission while maintaining low power consumption. The module uses an SPI communication interface and features onboard DIP switches for flexible pin switching, supporting multiple stacked modules for functional expansion. It is suitable for wireless control applications such as industrial automation, smart homes, automatic lighting, and robotics.

Datasheet

Module CC1101 Schematics PDF : SCH_Module_CC1101_SCH_Main_V0.1_20241230_2025_07_04_19_47_33.pdf
Module CC1101 Model Size PDF : M135-and-M146-model-size-GNSS-1.pdf
Module CC1101 Datasheet : CC1101_Datasheet.pdf
E07-900M10S : E07-M_UserManual_CN_v1.0.pdf
