(M034)ECG Module

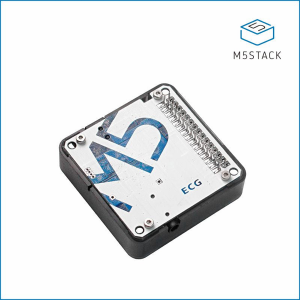

ECG Module13.2 (AD8232) with cables and pads

SKU : M034
Shop : https://shop.m5stack.com/products/ecg-module13-2-ad8232-with-cables-and-pads?ref=langship
Shop(Japan) : https://www.switch-science.com/catalog/6782/
Document : https://docs.m5stack.com/en/module/ecg
Release Date(probably) : 2020-10-30

ECG is a heart rate monitor (electrocardiogram) unit,it can detect the heart rate and output a cardiogram signal. Electrocardiogram (ECG) is a technology that uses an electrocardiograph to record the changes in the electrical activity of the heart during each cardiac cycle.

Datasheet

: static.pdf
AD8232 : AD8232_datasheet_en.pdf
AD8603 : AD8603_datasheet_en.pdf
AD7476 : AD7476_datasheet_en.pdf
