(K010)CORE2

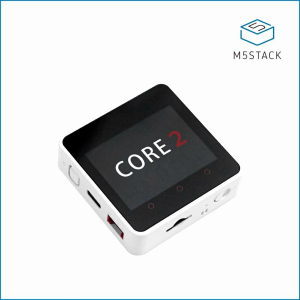

M5Stack Core2 ESP32 IoT Development Kit

SKU : K010
Shop : https://shop.m5stack.com/products/m5stack-core2-esp32-iot-development-kit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/6530
Document : https://docs.m5stack.com/en/core/core2
Quick Start : https://docs.m5stack.com/en/quick_start/core2/uiflow
Release Date(probably) : 2020-09-01

M5Core2 is the second generation core device in the M5Stack iot development kit series, which further enhances the functions of the original generation of cores.

Variation

(K010)CORE2 - PortA(I2C) Only + Bus
(K010-AWS)CORE2 FOR AWS - PortA(I2C), PortB(GPIO), PortC(UART) + Security Chip
(K010-SI)CORE2 FOR AWS KIT - PortA(I2C), PortB(GPIO), PortC(UART) + Security Chip + Units
(K034)TOUGH - Waterproof Model
(K010-V11)CORE2 V1.1 - AXP192 to AXP2101+INA3221

Datasheet

: static.pdf
ESP32 Datasheet : esp32_datasheet_en.pdf
Core2-Schematic : CORE2_V1.0_SCH.pdf
Core2 Expansion board-Schematic : CORE2_EXT_Board.pdf
ESP32 : esp32_datasheet_en_v3.9.pdf
FT6336U : Ft6336GU_Firmware%20%E5%A4%96%E9%83%A8%E5%AF%84%E5%AD%98%E5%99%A8_20151112-%20EN.xlsx
NS4168 : NS4168_CN_datasheet.pdf
MPU6886 : MPU-6886-000193%2Bv1.1_GHIC_en.pdf
ILI9342C : ILI9342C-ILITEK.pdf
SPM1423 : SPM1423HM4H-B_datasheet_en.pdf
BM8563 : BM8563_V1.1_cn.pdf
SY7088 : SY7088-Silergy.pdf
AXP192 datasheet : AXP192_datasheet_en.pdf
AXP192 register : AXP192_datasheet_cn.pdf
1027DC Motor : 1027RFN01-33d.pdf
