(K131-V11)Air Quality v1.1

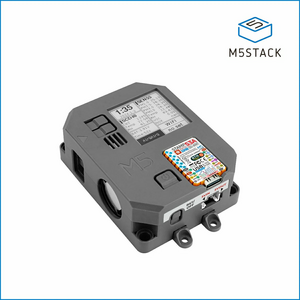

Air Quality Kit v1.1 with M5StampS3A (SEN55, SCD40)

SKU : K131-V11
Shop : https://shop.m5stack.com/products/air-quality-kit-v1-1-with-m5stamps3a-sen55-scd40?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10683
Document : https://docs.m5stack.com/en/core/Air_Quality_v1.1
Release Date(probably) : 2025-09-12

Air Quality v1.1 is an integrated low-power air quality monitoring device. Compared to the previous generation, the new version adopts the Stamp-S3A master control, with optimizations and improvements in overall power consumption and Wi-Fi antenna design. The device features a 1.54-inch e-ink screen with a resolution of 200 x 200. It is equipped with a multifunctional air quality sensor SEN55 and a CO2 sensor SCD40, capable of monitoring PM1.0, PM2.5, PM4, PM10 particulates, temperature, humidity, VOC, and CO2 concentration in the air. The built-in 600mAh lithium battery and RTC low-power power management circuit allow it to achieve sleep and timed wake-up functions. The factory firmware supports uploading air quality data to the M5Stack Ezdata cloud platform, providing users with a convenient remote data viewing function. The bottom structure offers LEGO-compatible mounting holes, a magnetic base, and 4 removable mounting lugs, supporting various mounting methods. Suitable for air monitoring in homes, schools, industrial sites, and medical environments.

Datasheet

Air Quality v1.1 Schematics PDF : Sch_AirQ_v1.0.pdf
Stamp-S3A Schematics PDF : Sch_StampS3_v0.3.3.pdf
Air Quality v1.1 Model Size PDF : AIRQ-00.pdf
SEN55 Datasheet : Sensirion_Datasheet_Environmental_Node_SEN5x.pdf-9e2861345ac4a2cd640cc28e0e2d2a07.pdf
SCD40 Datasheet : SCD40.pdf
GDEY0154D67 Datasheet : GDEY0154D67(1).pdf
