(K010-AWS-V13)Core2 For AWS v1.3

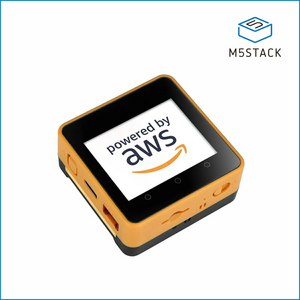

M5Stack Core2 for AWS Kit v1.3

SKU : K010-AWS-V13
Shop : https://shop.m5stack.com/products/m5stack-core2-for-aws-kit-v1-3?ref=langship
Document : https://docs.m5stack.com/en/core/Core2_For_AWS_v1.3
Release Date(probably) : 2026-04-03

Core2 For AWS v1.3 is a development kit designed for AWS IoT learning and security projects, consisting of the M5Stack Core2 main controller and the Base M5GO Bottom2 v1.3 expansion base with an integrated cryptographic chip.

Datasheet

Core2 Schematics PDF : CORE2_V1.0_SCH.pdf
M5GO-Bottom For AWS v1.3 Schematics PDF : SCH_M5GO_Bottom2_SCH_Main_V1.3_AWS_Version_2026_01_30_10_06_42.pdf
Core2 For AWS v1.3 Model Size PDF : K010-AWS-V13_Core2_For_AWS_v1.3_Dimension_Diagram.pdf
ESP32 : esp32_datasheet_en.pdf
FT6336U : Ft6336GU_Firmware%20%E5%A4%96%E9%83%A8%E5%AF%84%E5%AD%98%E5%99%A8_20151112.xlsx
NS4168 : NS4168_CN_datasheet.pdf
BMI270 : BMI270.PDF
ILI9342C : ILI9342C-ILITEK.pdf
SPM1423 : SPM1423HM4H-B_datasheet_en.pdf
BM8563 : BM8563_V1.1_cn.pdf
SY7088 : SY7088-Silergy.pdf
AXP192 datasheet : AXP192_datasheet_en.pdf
AXP192 register : AXP192_datasheet_cn.pdf
ATECC608 : ATECC608A-TNGTLS-CryptoAuthentication-Data-Sheet-DS40002112B.pdf
1027DC Motor : 1027RFN01-33d.pdf
