(U030)WEIGHT

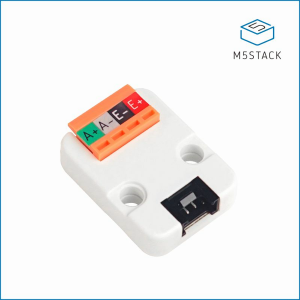

Mini Weight Unit (HX711) Load Cell Amplifier


WEIGHT is a versatile unit designed for precise weight measurement. It features the integration of the HX711, a 24-bit A/D converter chip specifically tailored for high-accuracy electronic scales. The unit provides selectable input channels, allowing you to seamlessly switch between Channel A and Channel B. These channels are connected to the internal low-noise programmable gain amplifier (PGA).Channel A offers programmable gain options of 128 or 64, providing flexibility to adapt to different measurement scenarios. The corresponding full-scale differential input signal amplitudes are ±20mV or ±40mV, respectively. On the other hand, Channel B offers a fixed gain of 32, simplifying the measurement process without the need for internal register programming.The unit is designed to deliver precise and reliable weight measurements, ensuring accuracy and consistency in your applications. With its advanced features and convenient pin-driven control signals, WEIGHT is an excellent choice for various weight measurement applications that demand high precision and performance.
