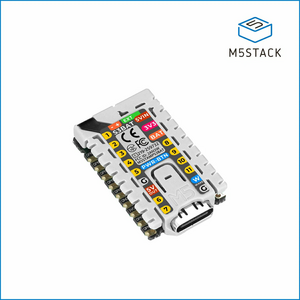

(S015)Stamp-S3Bat

M5StampS3 BAT Module with Battery Connector

SKU : S015
Shop : https://shop.m5stack.com/products/m5stamps3-bat-module-with-battery-connector?ref=langship
Document : https://docs.m5stack.com/en/core/Stamp-S3Bat
Release Date(probably) : 2026-03-20

Stamp-S3Bat is an embedded core module with integrated power management. It uses the ESP32-S3-PICO-1-N8R8 as the main control core, supporting 2.4GHz Wi-Fi, with built-in 8MB Flash and 8MB PSRAM. The module leads out a total of 11 GPIOs and 1 wake-up IO, and is equipped with a 24P BTB connector (supporting DVP interface). The onboard battery power interface is used for external 3.7V lithium battery power supply. It features the built-in M5MP1 multi-level power control design, supporting power input/output control, lithium battery charging management, and status detection such as input voltage and battery voltage. It also supports external low-power wake-up functions; after the main controller enters a low-power sleep state, the power can be restarted via the external wake-up IO. The module features an onboard programmable RGB LED and adopts a 2.54mm standard pitch half-hole pad design, supporting various integration methods such as SMT and DIP, making it convenient for developers to quickly build IoT applications.

Datasheet

Stamp-S3Bat Schematics PDF : S015-SCH_Stamp-S3BAT.pdf
Stamp-S3Bat Model Size PDF : S015-stamp-s3BAT.pdf
ESP32-S3 : esp32-s3_datasheet_en.pdf
LGS4056HDA : C5280698_Battery_Management_LGS4056HDA-4.35_Datasheet_LGS4056HDA-4.35.pdf
BTB0.408-24PLBDR-M41 : BTB0.408-XPLBDR-M41.pdf
M5PM1 Power Management Chip : M5PM1_Datasheet_EN.pdf
