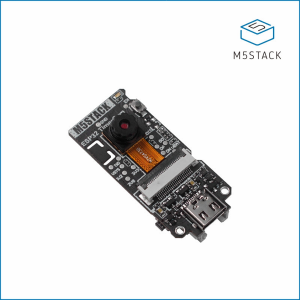

(U082)Timer Camera

ESP32 PSRAM Timer Camera (OV3660)

SKU : U082
Shop : https://shop.m5stack.com/products/esp32-psram-timer-camera-ov3660?ref=langship
Shop(Japan) : NG
Document : https://docs.m5stack.com/en/unit/timercam
Quick Start : https://docs.m5stack.com/en/quick_start/timer_cam/quick_start_list
Release Date(probably) : 2020-09-25

Timer Camera is a esp32 cam module based on the ESP32 with 8MB of integrated with PSRAM. The 3 million (3MP) pixel camera (ov3660) ,DFOV 66.5 ° and can shoot a maximum of 2048x1536 resolution photos. There is a LED status indicator and reset button on the board. Timer esp32 camera is designed to have ultra-low power consumption. Through the use of the RTC (BM8563), timing, sleep and wake-up functions can be utilized.

Datasheet

: static.pdf
TimerCAM : Sch_M5TimerCAM.pdf
ESP32 : esp32_datasheet_cn.pdf
OV3660 : OV3660_CSP3_DS_1.3_sida.pdf
