(K002)GRAY[EOL]

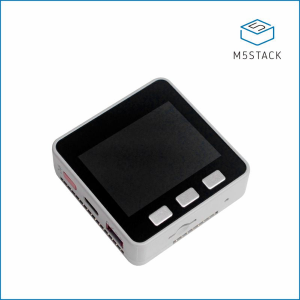

(EOL)ESP32 GRAY Development Kit with 9-Axis Sensor

SKU : K002
Shop : https://shop.m5stack.com/products/grey-development-core?ref=langship
Shop(Japan) : https://www.switch-science.com/products/3648
Document : https://docs.m5stack.com/en/core/gray
Quick Start : https://docs.m5stack.com/en/quick_start/m5core/uiflow
Release Date(probably) : 2018-01-15

M5Stack GRAY Kit is one of the M5Stack development kit series, which is a upgrade from the Basic kits. In comparison, Gray kit provides an extra IMU sensor, BMM150 + MPU6886. Gray kit is a nice choice for users who just get started or in progress.

Datasheet

: static.pdf
here : IIC_IP5306_REG_V1.4.pdf
ESP32 Datasheet : esp32_datasheet_en.pdf
Schematic : M5-Core-Schematic(20171206).pdf
ESP32 : esp32_datasheet_en.pdf
ILI9342C : ILI9342C-ILITEK.pdf
MPU6886 : MPU-6886-000193%2Bv1.1_GHIC_en.pdf
BMM150 : BMM150_datasheet_en.pdf
IP5306 : IIC_IP5306_REG_V1.4_cn.pdf
