(U160)Hbridge Unit

H-bridge Unit(STM32F030)

SKU : U160
SHOP : https://shop.m5stack.com/products/h-bridge-unitstm32f030?ref=langship
Document : https://docs.m5stack.com/en/unit/Hbridge Unit
Release Date(probably) : 2023-04-07

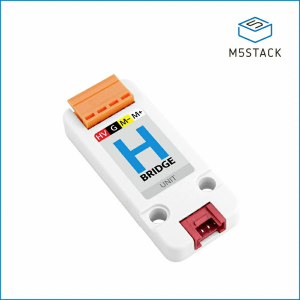

Hbridge Unit is a highly efficient DC motor drive module designed to provide reliable motor control functionality. It incorporates the “STM32F030+RZ7899” scheme, enabling precise control of DC motors. The module communicates with the M5 host via I2C, allowing for PWM control of motor speed as well as forward, backward, and braking functions.

Datasheet

STM32F030F4P6 : STM32F030F4P6.PDF
RZ7899 : RZ7899.PDF
