(K025)BASE15[EOL]

(EOL)Base15 Proto Industrial Board Module

SKU : K025
Shop : https://shop.m5stack.com/products/base15-proto-industrial-board-module?ref=langship
Shop(Japan) : https://www.switch-science.com/products/6545
Document : https://docs.m5stack.com/en/base/base15

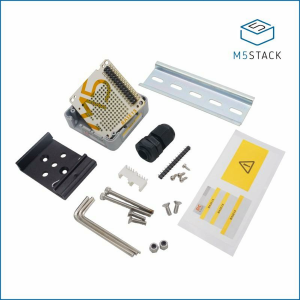

Base15 is a highly customizable bottom for industrial purpose. Similar to PLC Base but higher customized level. Package includes proto board which allows you to add up your own circuit design. On the board, two Grove bonding pads are reserved. Another component comes with the package is an M type waterproof joint which can be assembled on the side and the bottom of the Base.

Datasheet

: static.pdf
Schematic : BASE15.pdf
