(K012-C)PoE Module[EOL]

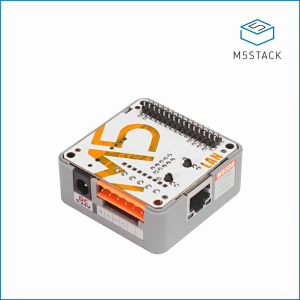

(EOL)LAN Module W5500 with POE
- SKU : K012-C
- Shop : https://shop.m5stack.com/products/lan-module-w5500-with-poe?ref=langship
- Shop(Japan) : https://www.switch-science.com/catalog/6544/
- Document : https://docs.m5stack.com/en/base/w5500PoE
Base PoE is an M5 Base that implements a W5500 Ethernet controller chip with PoE module, which provides Hardwired TCP/IP embedded Ethernet control to facilitate easier internet connection to embedded systems. W5500 integrates TCP/IP protocol stack, 10/100M Ethernet data link layer (MAC) and physical layer (PHY).This base supports RS485 / RS232 communication and can be used as an Ethernet to serial port server. It is specifically designed for industrial applications. PoE (Power over Ethernet) technology is supported. Through the built-in PoE module, power can be directly supplied to the base through PoE hub / switch without a separate power supply. It comes with a couple of HT3.96 connectors, metal rail and magnet discs for easy installation. The 6 pins of the HT3.96 connector are spare, you can wire them up with an RS485 or RS232 adapter board as you like.
Variation
- (K012-B)LAN MODULE - W5500 + RS485
- (K012-B-V12)LAN BASE V12 - W5500 + RS485 + RS232
- (K012-C)POE MODULE - W5500 + RS485 + RS232 with POE
Datasheet
- : static.pdf
- W5500 : W5500_datasheet_v1.0.2_1_en.pdf
- SP485EEN : SP485EEN_en.pdf
- MAX232 : MAX232.pdf
