(U160-V11)HBridge v1.1 Unit

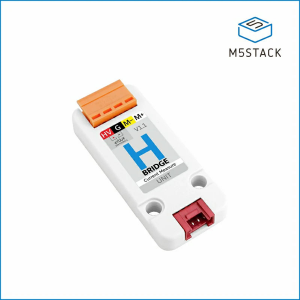

H-bridge Unit v1.1 (STM32F030)

SKU : U160-V11
SHOP : https://shop.m5stack.com/products/h-bridge-unit-v1-1-stm32f030?ref=langship
Document : https://docs.m5stack.com/en/unit/HBridge v1.1 Unit
Release Date(probably) : 2023-08-11

Meet the HBridge v1.1 Unit – a state-of-the-art DC motor drive module that redefines motor control. Powered by the “STM32F030+RZ7899” scheme, this module enables seamless I2C communication with the M5 host, offering precise PWM control for speed adjustment, as well as easy management of forward, reverse, and braking functions.

Datasheet

STM32F030F4P6 : STM32F030F4P6.PDF
RZ7899 : RZ7899.PDF
INA199A1DCKR : INA199A1DCKR.pdf
