(A122)BASE AAA

Base AAA Battery Holder

SKU : A122
SHOP : https://shop.m5stack.com/products/base-aaa-battery-holder?ref=langship
Document : https://docs.m5stack.com/en/base/base_aaa
Release Date(probably) : 2022-08-13

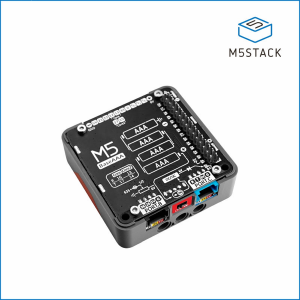

Base AAA is a ‘5x5cm’ series base with 4 x AAA Dry Batteries holder. Unlike other Lithium Battery Base, Base AAA is powered by safe and reliable dry batteries, and the onboard power switch allows for manual power shutdown, reducing battery drain. Port B and Port C are reserved for expansion, and 1X12-Pin 2.54 pitch female expansion connector is provided. There are mounting holes on the side for easy fixing and expansion. The bottom supports magnet and screw mounting.

Datasheet

Schematic PDF : Base_AAA.pdf
