(K065)ATOM PWM Kit[EOL]

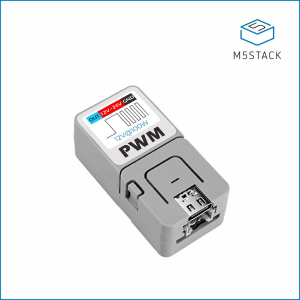

(EOL)ATOM PWM Kit (FDD8447L)

SKU : K065
SHOP : https://shop.m5stack.com/products/atom-pwm-kit-fdd8447l?ref=langship
Document : https://docs.m5stack.com/en/atom/atom_pwm
Release Date(probably) : 2021-08-06

ATOM PWM is a single-channel PWM (Pulse Width Modulation) DC driver that incorporates a MOSFET with a load capacity of up to 12V@100W. It is specifically designed for high-power DC motor PWM speed control and industrial heating wire control applications.ATOM PWM utilizes ATOM LITE as the controller, which features a built-in ESP32 microcontroller. This configuration provides several key capabilities. Firstly, it offers a wide range of PWM dynamic adjustments, including a frequency of 5 kHz and a duty cycle adjustment range of 0-100%. Additionally, the resolution can reach up to 13 bits, enabling precise control over the PWM signal.ATOM PWM is equipped with built-in Wi-Fi functionality, allowing for easy remote control and monitoring. This feature enables users to adjust and monitor the PWM parameters wirelessly, providing convenient control options.For ease of use and configuration, ATOM PWM supports UIFlow graphical programming. This intuitive programming environment simplifies the setup of signal output and facilitates function expansion. Users can easily configure the desired PWM parameters and customize the driver’s behavior according to their specific requirements.

Datasheet

FDD8447L : C247783_FDD8447L_2018-10-11.PDF
EG27324 : C189546_EG27324_2018-03-27.PDF
ME3116AM6G : C97643_ME3116AM6G_2017-03-22.PDF
