(M014-B)SERVO2 Module

SERVO2 Module 16 Channels - 13.2 (PCA9685)

SKU : M014-B
Shop : https://shop.m5stack.com/products/servo2-module-16-channels-13-2-pca9685?ref=langship
Shop(Japan) : https://www.switch-science.com/catalog/6737/
Document : https://docs.m5stack.com/en/module/servo2
Release Date(probably) : 2020-10-16

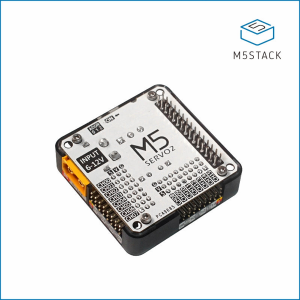

SERVO 2 is an updated servo driver module in the M5Stack stackable module series. It uses a PCA9685 16 channel PWM controller to control 16 channel servos at the same time. The power input is 6-12V DC and two SY8368AQQC chips are used for voltage reduction.

Variation

(M014)SERVO MODULE[EOL] - [EOL]12 Channels
(M014-B)SERVO2 MODULE - 16 Channels - 13.2 (PCA9685)

Datasheet

: static.pdf
PCA9685 - datasheet : PCA9685.pdf
