(U098)UlTRASONIC[EOL]

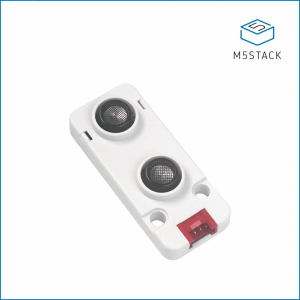

(EOL)Ultrasonic Distance Unit (RCWL-9600)

SKU : U098
SHOP : https://shop.m5stack.com/products/ultrasonic-distance-unit-rcwl-9600?ref=langship
Document : https://docs.m5stack.com/en/unit/sonic
Release Date(probably) : 2020-10-09

Ultrasonic is an ultrasonic distance measuring sensor unit, with the capability of simultaneous reception and transmission. The ultrasonic probe has a sound frequency of 40KHz, a direction angle of ±20 ° and an accuracy of 1mm. The internal part is calculated by an RCWL-9600 ultrasonic distance measuring chip, and the measurement results can be directly obtained through I2C interface (0x57). The effective distance is 30 - 150cm.

Variation

(U098)ULTRASONIC - RCWL-9600(I2C)
(U098-B1)SONIC.I2C - RCWL-9620(GPIO)
(U098-B2)SONIC.IO - RCWL-9620(GPIO)
