(K145)Tab5/Tab5 Kit

M5Stack Tab5 IoT Development Kit (ESP32-P4)

SKU : K145
Shop : https://shop.m5stack.com/products/m5stack-tab5-iot-development-kit-esp32-p4?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10378
Document : https://docs.m5stack.com/en/core/Tab5
Release Date(probably) : 2025-05-09

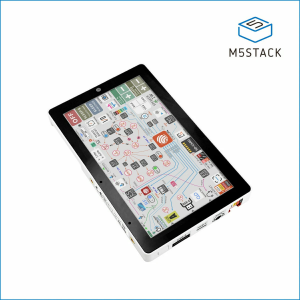

Tab5 is a developer-oriented, highly extensible portable IoT terminal development device that integrates a dual-SoC architecture and abundant hardware resources. Its main controller is the RISC-V-based ESP32-P4 SoC, equipped with 16 MB Flash and 32 MB PSRAM; the wireless module uses ESP32-C6-MINI-1U, supporting Wi-Fi 6 with an antenna system that can switch between a built-in 3D antenna and an external MMCX antenna port, flexibly adapting to different deployment environments and ensuring high data throughput and low latency.

Datasheet

Tab5 Overall Design Block Diagram : Tab5_Overall_Design_Block_Diagram.pdf
Tab5 Schematics PDF : Tab5_Schematics_PDF.pdf
ESP32-P4 : esp32-p4_datasheet_en.pdf
BMI270 : BMI270.PDF
ESP32-C6 : esp32-c6_datasheet_en.pdf
NS4150B : NS4150B.pdf
ES7210 : ES7210.PDF
ES8388 : ES8388.pdf
INA226 : INA226.pdf
IP2326 : IP2326.pdf
ST7123 Model Touch IC Interface Protocol Document : ST7123-TDDI-Interface-Protocol-V01.11.pdf.pdf
ST7123 Model Screen Manual : ST7123_SPEC_Preliminary_V0.5.pdf
RX8130CE Datasheet : RX8130CE_cn.pdf
RX8130CE Register Manual : RX8130CE_cn-Register-Datasheet.pdf
