(K007)FIRE[EOL]

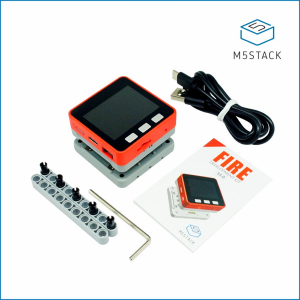

(EOL)M5Stack FIRE IoT Development Kit (PSRAM 2.0)

SKU : K007
Shop : https://shop.m5stack.com/products/fire-iot-development-kit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/3953
Document : https://docs.m5stack.com/en/core/fire
Quick Start : https://docs.m5stack.com/en/quick_start/m5core/uiflow
Release Date(probably) : 2018-06-20

M5Stack FIRE Kit, as one of the M5Stack iot development kit series, is an upgrade from the Gray kits. Providing 9-Axis IMU sensor(6-Axis posture acceleration measurement + 3-Axis magnetic measurement), it equips with more hardware resources : 16M Flash + 8M PSRAM , enhanced Base (M5GO Base and M5GO CHG Base), larger battery, etc. For those developers who ask for hardware performance, Fire will be a good choice.

Variation

(K007)FIRE[EOL] - [EOL](USB2UART: CP2104, IMU: 9-axis BMM150 + MPU6886)
(K007-V26)FIRE 2.6 - New Version(USB2UART: CH9102, IMU: 6-axis MPU6886)
(K007-V27)FIRE 2.7 - glass screen. Grove voltage enhancement (5.1V)

Datasheet

: static.pdf
here : IIC_IP5306_REG_V1.4.pdf
ESP32 Datasheet : esp32_datasheet_en.pdf
Schematic : M5-Core-Schematic(20171206).pdf
ESP32 : esp32_datasheet_en.pdf
ILI9342C : ILI9342C-ILITEK.pdf
MPU6886 : MPU-6886-000193%2Bv1.1_GHIC_en.pdf
BMM150 : BMM150_datasheet_en.pdf
SH200Q : SH200Q_en.pdf
IP5306 : IIC_IP5306_REG_V1.4_cn.pdf
