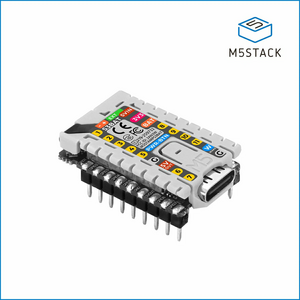

(S015-DIP)Stamp-S3Bat DIP

M5StampS3 BAT Module with 2.54 Header Pin

SKU : S015-DIP
Shop : https://shop.m5stack.com/products/m5stamps3-bat-module-with-2-54-header-pin?ref=langship
Document : https://docs.m5stack.com/en/core/Stamp-S3Bat_DIP
Release Date(probably) : 2026-03-20

Stamp-S3Bat DIP is an embedded core module with integrated power management. It features the ESP32-S3-PICO-1-N8R8 main controller, supporting 2.4GHz Wi-Fi with built-in 8MB Flash and 8MB PSRAM. The module leads out 11 GPIOs and 1 wake-up IO, equipped with a 24P BTB connector (supporting DVP interface). An onboard battery power interface is provided for connecting an external 3.7V lithium battery. It integrates the M5MP1 multi-stage power control design, supporting power input/output control, lithium battery charging control, and status detection for input voltage and battery voltage. It also supports external low-power wake-up; after the main controller enters low-power sleep mode, the power can be woken up via the external wake-up IO. Featuring a programmable RGB LED, the Stamp-S3Bat DIP version comes with pre-soldered 2.54mm standard pitch headers, allowing integration into applications via PCB insertion, breadboard connection, or Dupont cables to help developers quickly build IoT applications.

Datasheet

Stamp-S3Bat DIP Schematics PDF : S015-SCH_Stamp-S3BAT.pdf
Stamp-S3Bat DIP Model Size PDF : S015-DIP-stamp-s3bat-DIP-model-size.pdf
ESP32-S3 : esp32-s3_datasheet_en.pdf
LGS4056HDA : C5280698_Battery_Management_LGS4056HDA-4.35_Datasheet_LGS4056HDA-4.35.pdf
BTB0.408-24PLBDR-M41 : BTB0.408-XPLBDR-M41.pdf
M5PM1 Power Management Chip : M5PM1_Datasheet_EN.pdf
