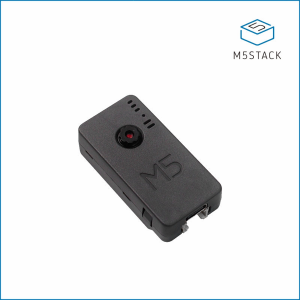

(U082-X)Timer Camera X

ESP32 PSRAM Timer Camera X (OV3660)

SKU : U082-X
Shop : https://shop.m5stack.com/products/esp32-psram-timer-camera-x-ov3660?ref=langship
Shop(Japan) : https://www.switch-science.com/catalog/6742/
Document : https://docs.m5stack.com/en/unit/timercam_x
Quick Start : https://docs.m5stack.com/en/quick_start/timer_cam/media_trans
Release Date(probably) : 2020-09-25

Timer Camera X is a camera module based on ESP32, integrated with ESP32 chip and 8M-PSRAM. The camera (ov3660) with 3 million pixels , DFOV 66.5 ° and shoot 2048x1536 resolution photo, built-in 140mAh battery and LED status indicator, featuring ultra-low power consumption design. There is a reset button under the LED. Through RTC (BM8563), timing sleep and wake-up can be realized. The standby current is only 2μA. After timing photo taking function(one photo per hour) is turned on, the battery can work continuously for more than one month. The module supports Wi-Fi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. Through M5Burner burning firmware,this esp32 cam can be set directly with Camera-Tool, and Timer Camera X data can be processed in UIFlow.

(U082-X)Timer Camera X

ESP32 PSRAM Timer Camera X (OV3660)

Datasheet
