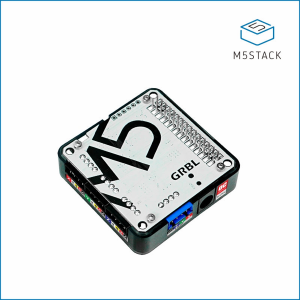

(M035)GRBL 13.2 Module

GRBL Module 13.2 Stepmotor Driver (DRV8825)

SKU : M035
Shop : https://shop.m5stack.com/products/grbl-module-13-2-stepmotor-driver-drv8825?ref=langship
Shop(Japan) : https://www.switch-science.com/catalog/6994/
Document : https://docs.m5stack.com/en/module/grbl13.2
Release Date(probably) : 2021-01-22

GRBL 13.2 is a three-axis stepper motor driver module in the M5Stack stacking module series. It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chip control ways, which can drive three bipolar steppers at the same time.

Datasheet

: static.pdf
DRV8825 Datasheet : DRV8825_en.pdf
