(U013)ADC[EOL]

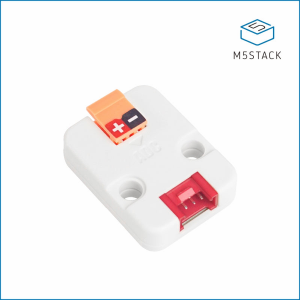

(EOL)ADC I2C Unit (ADS1100)

SKU : U013
Shop : https://shop.m5stack.com/products/adc-unit?ref=langship
Shop(Japan) : https://www.switch-science.com/catalog/5221/
Document : https://docs.m5stack.com/en/unit/adc

ADC is an A/D converter that integrates the ADS1100 chip, a 16-bit self-calibrating analog-to-digital converter. It utilizes the I2C communication protocol to interface with other devices. The ADS1100 can perform conversions at sampling rates of 8, 16, 32, or 128 samples per second (SPS). ADC features an on-chip programmable gain amplifier (PGA) that provides gains of up to 8x. This capability allows for high-resolution A/D conversions, making it an ideal solution for applications that require precise analog-to-digital data acquisition.ADC Unit offers a reliable and efficient solution for obtaining high-resolution digital representations of analog signals. With its I2C address set to 0x48, it can easily integrate into various systems and provide accurate and reliable A/D conversion capabilities.

Datasheet

: static.pdf
ADS1100 : ADS1100_en.pdf
