(U053)ENV HAT[EOL]

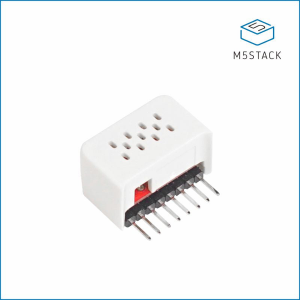

(EOL)M5StickC ENV Hat (DHT12, BMP280, BMM150)

SKU : U053
Shop : https://shop.m5stack.com/products/m5stickc-env-hat?ref=langship
Shop(Japan) : https://www.switch-science.com/products/5755
Document : https://docs.m5stack.com/en/hat/hat-env

ENV HAT It is able to detect the temperature, humidity, air pressure and magnetic field. This product relates via I2C protocol which allows you to obtain 4 types of environment data thru just 2pins, together with the tiny body, makes it a powerful application for envitonment data collecting.

Variation

(U053)ENV HAT[EOL] - [EOL]DHT12, BMP280, BMM150
(U053-B)ENV II HAT[EOL] - [EOL]SHT30, BMP280, BMM150
(U053-C)ENV II.R HAT - SHT30, BMP280
(U053-D)ENV III HAT - SHT30, QMP6988

Datasheet

: static.pdf
Schematic : StickHat_ENV.pdf
BMP280 Datasheet : BMP280-DS001-11_en.pdf
DHT12 Datasheet : DHT12_en.pdf
BMM150 Datasheet : BMM150_datasheet_en.pdf
