(K016-T2)M5StickT2

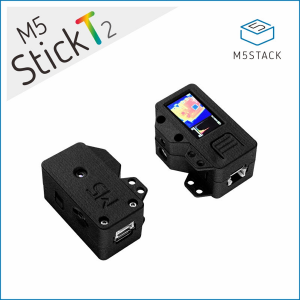

M5StickT2 ESP32 Thermal Camera Development Kit (Lepton 3.0)


M5StickT2 is a sleek and compact infrared thermal camera designed for precise temperature measurement. It features the advanced FLIR Lepton 3.0 long-wave infrared (LWIR) camera core, delivering a clear and stable image with an effective resolution of 160 * 120. As a non-contact infrared sensor covering a large area, it provides an excellent solution for temperature monitoring applications.The main control chip of M5StickT2 is Espressif’s ESP32, which not only offers built-in Wi-Fi support but also delivers impressive computing speeds of up to 240MHz. This ensures seamless image output with a high frame rate of 7 FPS and above. The 1.14-inch screen with a resolution of 135 * 240 allows for easy viewing of thermal images. M5StickT2 comes equipped with a wide range of hardware resources. It includes a built-in 6-axis Inertial Measurement Unit (IMU) for motion sensing, a digital microphone for audio input, and a power management chip to optimize battery usage. Speaking of battery, the device incorporates a 300mAh battery for convenient portability.For interactive operation, M5StickT2 provides two programmable buttons and a rotary encoder, offering intuitive control and customization options. To expand the device’s capabilities, a 4 Pin HY2.0 interface with I2C support is available at the bottom, allowing users to connect additional peripherals and sensors. The body of M5StickT2 is 3D printed using high-quality Black Nylon filament, ensuring durability and a sleek appearance. Furthermore, it features an M3 screw hole and a 1/4" screw hole on the underside, facilitating easy mounting in various setups.
