(U188-Lite)Unit RollerCAN-Lite

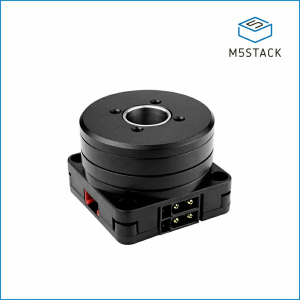

RollerCAN Lite Unit without Slip Ring (STM32)

SKU : U188-Lite
Shop : https://shop.m5stack.com/products/rollercan-lite-unit-without-slip-ring-stm32?ref=langship
Document : https://docs.m5stack.com/en/unit/Unit-RollerCAN%20Lite
Release Date(probably) : 2024-11-18

RollerCAN Lite Unit is a brushless DC motor motion control kit with multiple integrated control functions, designed for efficient motion control. It supports 6-16V DC power input (via the CAN interface) or 5V input (via the Grove interface) and can automatically adjust the power factor to ensure optimal performance. It features a built-in FOC closed-loop drive system, using a 3504 200KV brushless motor. The maximum continuous operating phase current is 0.5A without forced cooling, and 1A for short-term. The driver uses a magnetic encoder for feedback and supports current, speed, and position triple-loop control, ensuring precise control.
