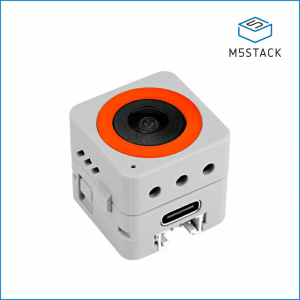

(C126-M12)AtomS3R-M12

ATOMS3R Camera Kit M12 Version (OV3660)

SKU : C126-M12
Shop : https://shop.m5stack.com/products/atoms3r-camera-kit-m12-version-ov3660?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10009
Document : https://docs.m5stack.com/en/core/AtomS3R-M12
Release Date(probably) : 2024-09-27

AtomS3R M12 is an IoT programmable controller integrated with an M12 camera, featuring a 3-megapixel OV3660 camera that supports high-resolution image capture. It uses the ESP32-S3-PICO-1-N8R8 as the main controller, with built-in WiFi functionality, 8MB onboard FLASH, and 8MB PSRAM. It includes a power management circuit that converts 5V to 3.3V and has an embedded three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The product comes with UVC (USB Video Class) firmware, allowing it to be used as a plug-and-play USB camera without the need for driver installation, and it also has infrared emission control.

Datasheet

: static.pdf
ESP32-S3-PICO-1-N8R8 : esp32-s3-pico-1_datasheet_en.pdf
OV3660 : OV3660_CSP3_DS_1.3_sida.pdf
BMI270 : BMI270.PDF
BMM150 : BMM150.PDF
