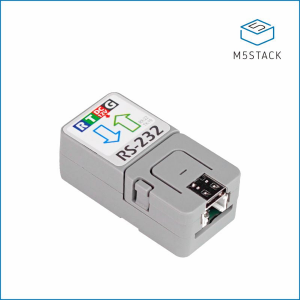

(EOL)ATOM RS232 Voltage Converter Development Kit (MAX232)

SKU : K046
Shop : https://shop.m5stack.com/products/atom-rs232-kit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/6473
Document : https://docs.m5stack.com/en/atom/atomic232
Release Date(probably) : 2020-06-19

ATOM RS-232 is a TTL-RS232 level-converter designed for use with the M5Atomic module. RS232 is a full-duplex communication protocol standard, which defines the electrical characteristics of the serial communication system. It is a widely used communication protocol in the field of industrial control. MAX232 chip is integrated in the module, which supports bidirectional conversion between TTL level and RS232 level. A DC/DC voltage regulator chip is integrated in the ATOM RS-232, which can directly convert the 12V voltage of the RS232 hub to 5V to supply power for ATOM.

Datasheet

: static.pdf
MAX232 : MAX232.pdf
AOZ1282CI : AOZ1282CI-datasheet.pdf
