(U183)Unit-DMX

DMX Unit with Isolated RS-485 Transceiver (CA-IS3092W)

SKU : U183
Shop : https://shop.m5stack.com/products/dmx-unit-with-isolated-rs485-transceiver?ref=langship
Document : https://docs.m5stack.com/en/unit/Unit-DMX
Release Date(probably) : 2024-08-23

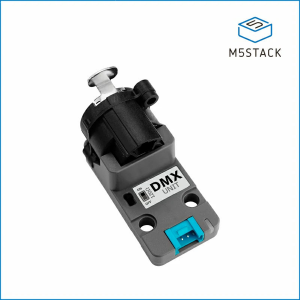

DMX Unit is a communication unit specifically designed for DMX-512 data transmission scenarios. It integrates the CA-IS3092W isolated half-duplex RS-485 transceiver, providing up to 5kVrms electrical isolation protection. The onboard 120Ω termination resistor switch matches the characteristic impedance of the signal transmission line, preventing signal reflection and distortion, and can be connected according to the usage scenario. Through the Grove interface, it communicates with the M5 host via serial communication. The device is equipped with an XLR-3 female interface, making it convenient for users to connect DMX devices. This product is suitable for stage lighting control, landscape lighting control, dimmer control, and other scenarios.

Datasheet

: static.pdf
CA-IS3092W Datasheet (Isolated RS485 Transceiver) : CA-IS3092W_EN.pdf
