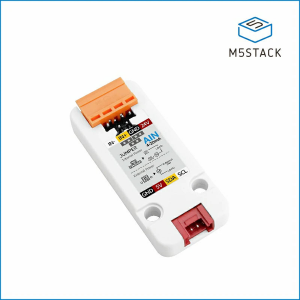

(U162)AIN4-20mA Unit

Analog to 12C Unit 4-20mA Input (STM32G030)

SKU : U162
Shop : https://shop.m5stack.com/products/ain4-20ma-unit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/9126
Document : https://docs.m5stack.com/en/unit/AIN4-20mA%20Unit
Release Date(probably) : 2023-05-26

AIN4-20mA Unit is a highly capable single-channel 4~20mA current analog measurement unit. Powered by the STM32G030F6 main control chip, it communicates seamlessly with the M5 host through i2c, ensuring efficient and reliable data transmission.

Datasheet

Unit AIN4-20mA Schematics PDF : SCH_UNIT_AIN4-20mA_V1.01.pdf
STM32G030F6 Datasheet : STM32G030F6%20datasheet.PDF
HCNR200 Datasheet : HCNR200%20datasheet.PDF
SGM321YC5 Datasheet : SGM321YC5%20datasheet.PDF
