(K005)FACES Kit[EOL]

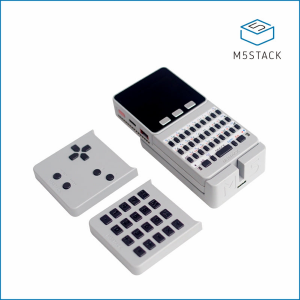

(EOL)M5STACK Faces Kit Pocket Computer with Keyboard/Game/Calculator

SKU : K005
SHOP : https://shop.m5stack.com/products/face?ref=langship
Document : https://docs.m5stack.com/en/core/face_kit
Quick Start : https://docs.m5stack.com/en/quick_start/m5core/uiflow

FACES Kit is a series of functional panels integration containing three most commonly used panels integration containing three most commonly used panels ‘GameBoy’,‘Calculator’ and ‘QWERTY’. With MEGA328 processor built inside, it works under slave mode through I2C communication protocol. With these 3 different panels, it will be very easy to support keyboard interaction with your M5Core.

Variation

(K005)FACES KIT[EOL] - (EOL)M5STACK Faces Kit Pocket Computer with Keyboard/Game/Calculator
(A003)QWERTY[EOL] - (EOL)M5STACK FACES QWERTY KeyBoard Panel
(A004)GAMEPAD[EOL] - (EOL)M5STACK FACES Gamepad Panel
(A005)CALCULATOR - M5STACK FACES Calculator Panel
(A006)ENCODER[EOL] - (EOL)Encoder Panel For FACES Kit (Mega328)
(A007)JOYSTICK FACES[EOL] - (EOL)Joystick Panel for M5 FACES
(A066)FINGER FACES[EOL] - (EOL)Finger Print FPC 1020A Panel for M5STACK Face Kit
(A067)RFID FACES[EOL] - (EOL)RFID RC522 Panel for M5 Faces

Datasheet

ESP32 Datasheet : esp32_datasheet_en.pdf
Schematic : M5-Core-Schematic(20171206).pdf
ESP32 : esp32_datasheet_en.pdf
ILI9342C : ILI9342C-ILITEK.pdf
MPU6886 : MPU-6886-000193%2Bv1.1_GHIC_en.pdf
BMM150 : BMM150_datasheet_en.pdf
IP5306 : IIC_IP5306_REG_V1.4_cn.pdf
