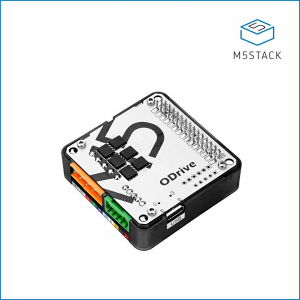

(M036)ODRIVE Module

Odrive 13.2 Module (DRV8301DCA)


ODrive is a high-performance servo motor drive module launched by M5Stack, based on the open source motion control solution ODrive. Supports the control of a single three-phase servo motor, the peak drive current can reach 5A. It has high-speed motor control capability while providing encoder signal interface, which can realize high-precision motion control positioning. The module uses UART communication interface and is compatible with the official ODrive configuration tool and protocol (you can also configure different motor motion modes through the host computer tool to make the motor work more smoothly and stably).

Datasheet
