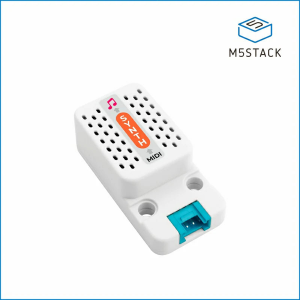

(U178)Unit-Synth

MIDI Synthesizer Unit (SAM2695)

SKU : U178
SHOP : https://shop.m5stack.com/products/midi-synthesizer-unit-sam2695?ref=langship
Document : https://docs.m5stack.com/en/unit/Unit-Synth
Release Date(probably) : 2024-01-26

Synth Unit is an audio module designed specifically for MIDI sound systems. This unit features the built-in SAM2695 audio synthesizer and accepts standard MIDI signals through serial communication. It provides various audio synthesis and processing capabilities, including audio synthesis, mixing, and sound effects processing. It is suitable for applications such as live performances, music production studios, electronic music stages, and STEAM education.

Datasheet

SAM2695 : SAM2695.pdf
Complete Schematic : Sch_Unit-MIDI_V1.0.pdf
